• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27329

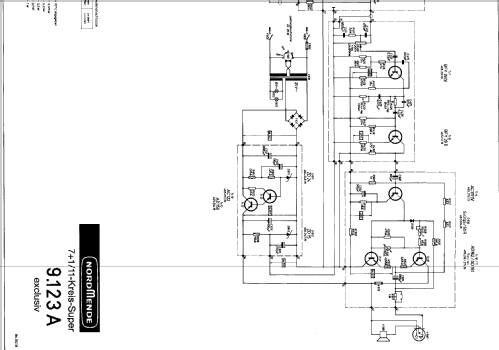

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• AF106 AF106 AF121 AF121 AF125 AF137 BFY39 BFY39 BC139 AD161 AD162 AC122 AD150 AA118 AA112 SiG0,5/50R ZD15 ZD24 Si-Br-Gl

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Exclusiv 969.123.A Ch= 9.123A - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 594 x 156 x 162 mm / 23.4 x 6.1 x 6.4 inch

• Notes
• Halbleiter teils mehrfach vorhanden.

  UKW: 87,5 - 104 MHz
  KW: 5950 - 6240 kHz
  MW: 515 - 1650 kHz
  LW: 140 - 360 kHz


• Net weight (2.2 lb = 1 kg)
• 5.9 kg / 12 lb 15.9 oz (12.996 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1968/1969

• Literature/Schematics (1)
• -- Original-techn. papers.
