• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 350544

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK92 DF96 DAF96 DL94

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; Export model

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 1,5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

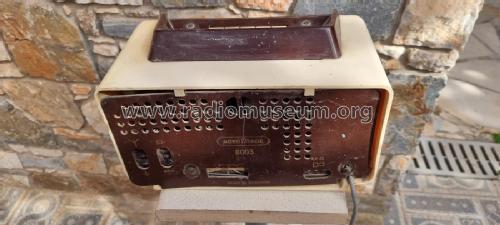

• Model: Export-Super 8003 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 305 x 200 x 175 mm / 12 x 7.9 x 6.9 inch

• Notes

• SW1: 2...6,5 MHz
  SW2: 6...19 MHz
  BC: 550...1600 kHz

• Net weight (2.2 lb = 1 kg)
• 2.9 kg / 6 lb 6.2 oz (6.388 lb)

• Author
• Model page created by Nikolaos Lamprakis. See "Data change" for further contributors.
