Exquisit 57 Ch= 774 + Rfk. Ch= 612

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1956/1957

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 20872

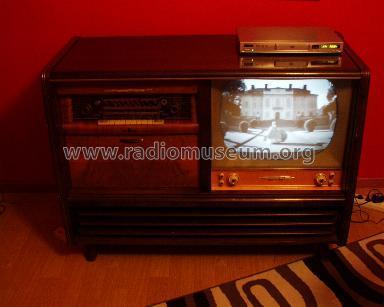

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• PCC84 PCF80 EF80 EF80 EF80 EF80 EF80 PL83 EF80 PABC80 PL82 EF80 EF80 ECC82 PCL82 ECH81 PL36 PY81 or PY83 DY86 MW53-80

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Exquisit 57 Ch= 774 + Rfk. Ch= 612 - Nordmende, Norddeutsche Mende-

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1230 x 935 x 580 mm / 48.4 x 36.8 x 22.8 inch

• Notes

• Fernseh-Chassis = Präsident 57;
  Rundfunk-Chassis = Tannhäuser 57 3D Ch= 612;
  Phono-Chassis = Dual 1003.

• Net weight (2.2 lb = 1 kg)
• 94 kg / 207 lb 0.8 oz (207.048 lb)

• Price in first year of sale
• 2,248.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57

• Literature/Schematics (1)
• -- Original-techn. papers.
