• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1957/1958

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 99707

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• PCC88 PCF82 EF80 EF80 EF80 EF80 ECC82 EF80 PL83 EF80 EF80 PABC80 PL84 ECL80 ECC82 PCL82 ECH81 PL36 PY81 or PY83 DY86 AW53-80

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

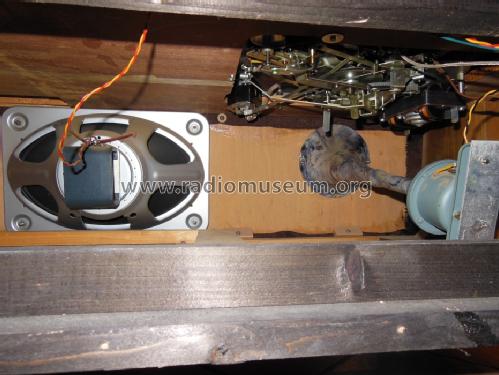

• Loudspeaker
• 5 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Exquisit 58 Ch= 5792X + Radio-Ch= 5714K - Nordmende, Norddeutsche Mende-

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1250 x 935 x 580 mm / 49.2 x 36.8 x 22.8 inch

• Notes

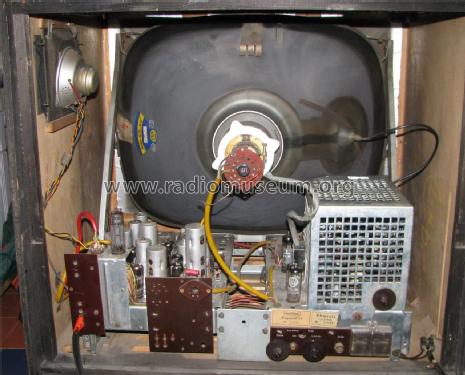

• Fernseh-Chassis = 5792X;
  Radiochassis = Tannhäuser 58 3D mit kleinen Änderungen;
  Phono-Chassis = Dual 1005.

• Net weight (2.2 lb = 1 kg)
• 99 kg / 218 lb 1 oz (218.062 lb)

• Price in first year of sale
• 2,248.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
