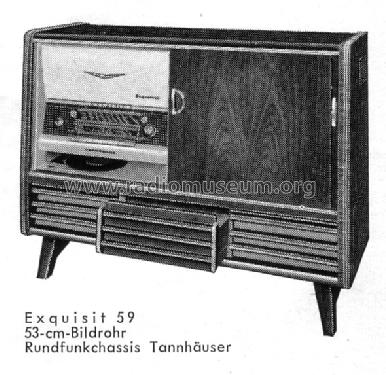

Exquisit 59 859.732.00 Ch= L59 + Rfk. Ch= 59/632
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1958/1959
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 100887
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- PCC88 PCF82 EF80 EF80 PM84 EF80 EF80 ECC82 EF80 PL83 EF80 EF80 PABC80 PL84 ECL80 ECC82 ECH81 PL36 PY81 or PY83 DY86 PCL82 AW53-80
- Number of Transistors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Changer (Record changer); Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Exquisit 59 859.732.00 Ch= L59 + Rfk. Ch= 59/632 - Nordmende, Norddeutsche Mende-
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 1230 x 935 x 580 mm / 48.4 x 36.8 x 22.8 inch
- Notes
-
Fernseh-Chassis = Diplomat 59, jedoch mit 53-cm-Bildröhre;
Rundfunk-Chassis = Tannhäuser 59;
Phono-Chassis = Dual 1005.
- Net weight (2.2 lb = 1 kg)
- 99 kg / 218 lb 1 oz (218.062 lb)
- Price in first year of sale
- 2,248.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
