• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1961/1962

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 105497

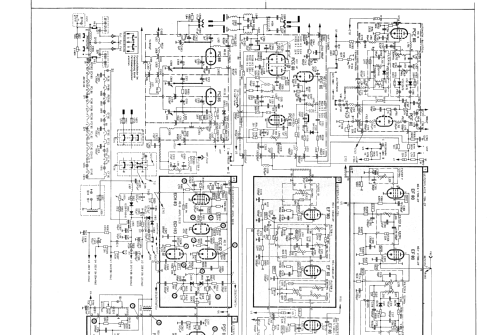

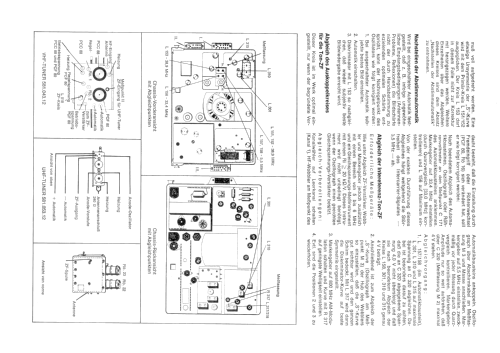

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• PCC88 PCF80 PC88 PC86 EF183 EF80 EF80 ECH83 PCL84 EF80 EF80 PCL86 PCF80 ECH83 ECC82 PCL82 PCF802 PL36 PY88 DY86 AW59-90

• Conflicting model year with tube data.
• The model date contradicts tube dates. [ PCF802 (1962)]

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Exquisit-Stereo Fernseh Ch= L13/LL13 + Radio Ch= 2/633 - Nordmende, Norddeutsche Mende-

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1265 x 935 x 460 mm / 49.8 x 36.8 x 18.1 inch

• Notes

• Fernseh-Chassis = L13/LL13;
  Rundfunk-Chassis = 2/633;
  Phono-Chassis = Dual 1008.

• Net weight (2.2 lb = 1 kg)
• 93.5 kg / 205 lb 15.2 oz (205.947 lb)

• Price in first year of sale
• 2,298.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
