• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1956

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 82167

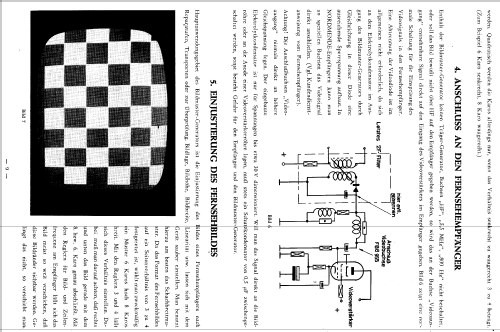

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• ECH81 ECH81 ECH81 ECH81 ECH81 ECC81 ECH81 ECC81 ECH81 ECH81 ECH81 150C2 EC92

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 220, 235 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Fernseh Bild Generator FBG955 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 192 x 262 x 350 mm / 7.6 x 10.3 x 13.8 inch

• Notes
• Bildmuster-Generator in Verbindung mit Träger-Generator FTG956.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 690.00 DM

• Mentioned in
• -- Schematic

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
