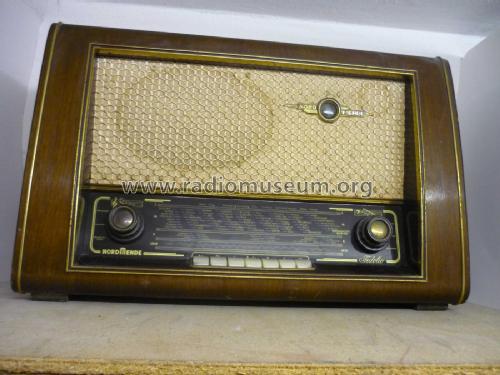

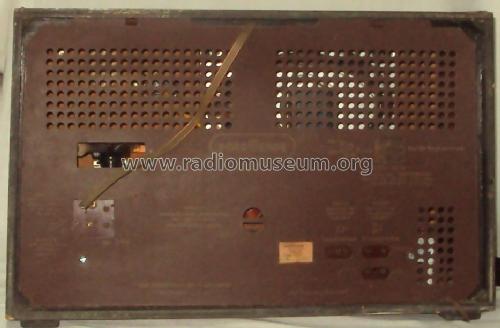

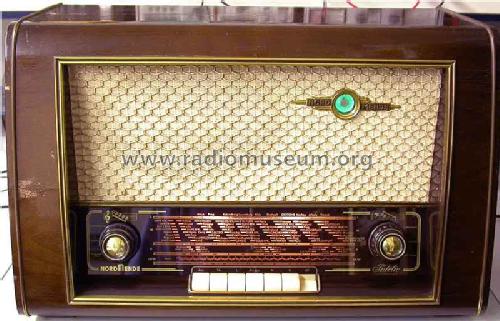

Fidelio Ch= 304

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19378

• Picture
• Schematics

Previous Next

Previous Next

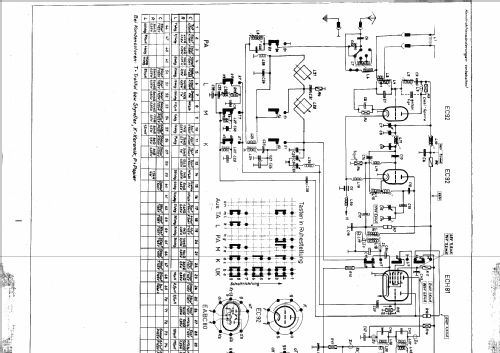

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EC92 EC92 ECH81 EF85 EM34 EABC80 EL84

• Number of Transistors

• Semiconductors
• B250C90

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Fidelio Ch= 304 - Nordmende, Norddeutsche Mende-

• Shape

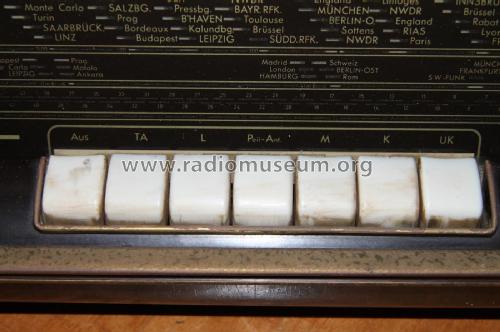

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 575 x 365 x 260 mm / 22.6 x 14.4 x 10.2 inch

• Notes

• schaltbare Bandbreite.

  Auch als Fidelio Chassis 304/8 mit 5 AM-ZF-Kreisen und wahlweise EM34 oder EM35.

• Net weight (2.2 lb = 1 kg)
• 10.7 kg / 23 lb 9.1 oz (23.568 lb)

• Price in first year of sale
• 335.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1953/54

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 1751 models, 1642 with images and 1268 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
