GALAXY-mesa 6606 974.102.A Ch= 774.102 A

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1973–1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29257

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF254 BF254 BF240 BF121 BF237 BC173 BF237 BC239 MPS-U01 BC238 BC232 TAA991 TBA641 BA180 AA112

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 9 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: GALAXY-mesa 6606 974.102.A Ch= 774.102 A - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 400 x 195 x 75 mm / 15.7 x 7.7 x 3 inch

• Notes

• 2 ICs.
  Wavebands:
  FM 87.5 - 108 MHz;
  MW 515 - 1650 kHz;
  LW 145 - 260 kHz;
  SW  16-, 19-, 25-, 31-, 41-, 49-m-band.

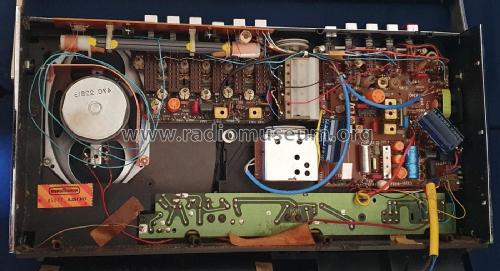

  Standardized PU/TR socket, outside speaker/earphone socket, antenna jack. On-off button. Key combination for phono. Slide volume and tone - bass and treble - controls, light and mains/battery switches. 2 speakers, 9 x 15 cm and 5,8 cm. Inside is the Nordmende TN186 power supply unit. Telescopic antenna with 9 sections, 117 cm long.

  When mains operation, the output power is 3 W.

• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)

• Price in first year of sale
• 328.00 DM

• External source of data
• Erb

• Source of data
• Katalog RFP 1973

• Mentioned in
• Handbuch VDRG 1973/1974 (S. F21)

• Literature/Schematics (1)
• Handbuch VDRG 1974/1975

• Literature/Schematics (2)
• HdB d.Rdf-& Ferns-GrH 1975/76
