Globetraveler exec 104

Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Data
Forum
Pictures
Collections

  • Year
  • 1968 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 283965

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); Export model
  • Tuned circuits
  • 7 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 50-60Hz; 110; 220 / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Globetraveler exec 104 - Nordmende, Norddeutsche Mende-
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 370 x 210 x 97 mm / 14.6 x 8.3 x 3.8 inch
  • Notes

  • This is believed to be the American version of a Transita Exact.  Approximate band frequencies as follows:
    AM: 540 - 1600 kHz
    FM: 88 - 108 MHz
    MB: 1.5 - 3.5 MHz
    SW2: 6 - 12 MHz
    SW1: 12 - 18 MHz

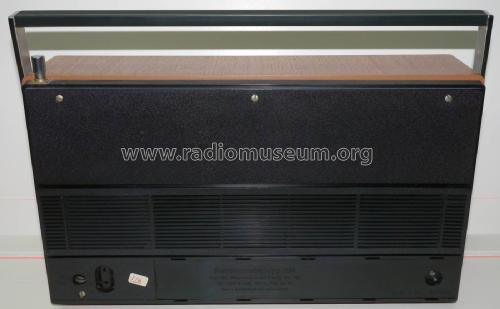

    The front is metal, the back is plastic, and the case is wood.

    See also Transita Exact.

  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Author
  • Model page created by David Erali. See "Data change" for further contributors.
