• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138945

• Number of Transistors
• 24

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110 ; 220 ; 6x1.5 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 9 cm = 3.5 inch

• Power out
• 1.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Globetraveler Stereo Typ 103 771.103.E - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 360 x 225 x 140 mm / 14.2 x 8.9 x 5.5 inch

• Notes

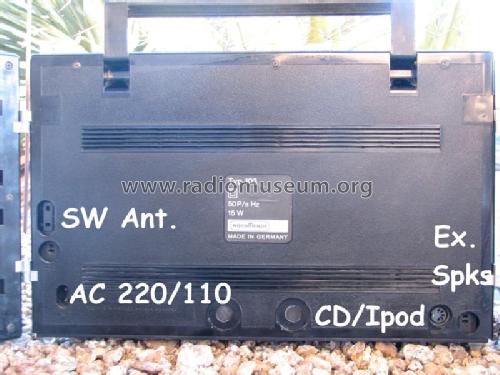

• US-export model based on the German domestic 'Transita stereo de Luxe' (ref. Mod.-ID = 86114). Very similar to the Transita in physical apparance (except for cosmetic differences in the front panel and all-English nomenclature). Frequency coverage is identical: LW 145...260 kHz; MW (AM) 515...1650 kHz; SW 5,95...6,2 MHz (49m); FM 87,5...108 MHz (also FM-stereo). Portable stereo; power output 1,6W max/channel (method of measurement not specified). The receiver has two separate loudspeaker boxes (each containing a 9x15cm/approx 4x6 inch oval speaker) which when closed shield the front with the scale and 6 knobs. Speakers can function while attached to (attaching hardware provides the electrical connections) or separated from the receiver (connecting cables stored in the speaker boxes). 9 push buttons on top (Mono, Phono, AFC, LW, AM, SW, FM, dial light, ON-OFF); one telescopic antenna. (Interesting to note that this export version shows 50 instead of 60 cycles ('50P/s Hz').)

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• External source of data
• Gary Geagan

• Source of data
• -- Other type before this -same/similar characteristics - see exchange.

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
