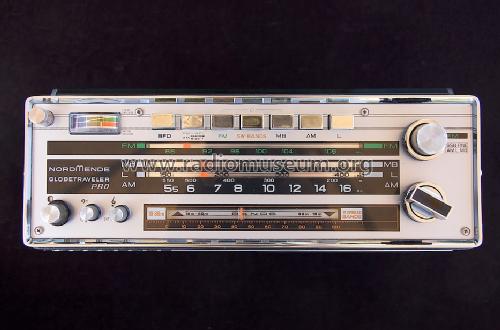

Globetraveler Pro Ch= 1.101F (769.101.F)

Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Data
Forum
Pictures
Collections

  • Year
  • 1969 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 157677

 Technical Specifications

  • Number of Transistors
  • 18
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 460 kHz
  • Tuned circuits
  • 7 AM circuit(s)     13 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / AC/DC 110; 220; Batt. 5 x 1.5 ; 6; 12 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 2 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Globetraveler Pro Ch= 1.101F - Nordmende, Norddeutsche Mende-
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 310 x 210 x 105 mm / 12.2 x 8.3 x 4.1 inch
  • Notes
  • Bands:
    BC,
    MB (Medium Band, former Police band),
    11 spread SW,
    FM.
    AM bandwidth switch narrow-wide. FM AFC. (with BFO)
  • Literature/Schematics (1)
  • -- Schematic

 Collections | Museums | Literature

Collections

The model Globetraveler Pro is part of the collections of the following members.

 Forum

Forum contributions about this model: Nordmende,: Globetraveler Pro Ch= 1.101F

Threads: 1 | Posts: 2

Hello:

My Nordmende Globetraveler Pro service manual indicates that the shortwave dial drum bulb is rated at 7 volts and 0.35 amperes. It is a subminature wedge base European style bulb.

From my research, it appears that this bulb is no longer available.

However, 6 and 12 volt subminature wedge base bulbs (in varying different amperages) are still available online from various sources. Can anyone suggest a suitable alternative (bulb make and model number) given that the original bulb is no longer available?

It would be accpetable to me if the bulb is a little too dim or bright. However, I do not want the bulb to burn-out frequently or to have the bulb draw too much current and possibly damage other electrical components of the radio.

The radio operates on 7.5 volts (5 D Cell batteries) and the dial light automatically turns-on if the radio is plugged-in to AC power or if an external AC-DC adapter is used.

I now have two Globetraveler Pro radios plus a Globetraveler III that all use the same bulb for the shortwave drum. They are late TN6000 series radios built during 1969-1970.

Any advice or recommendations would be greatly appreciated.

Thanks!

Mike Witas

Milwaukee, Wisconsin USA

Michael Witas, 13.Oct.12
