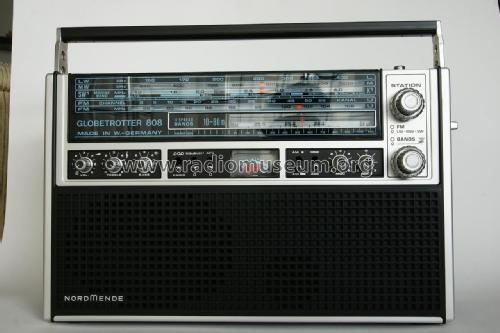

Globetrotter 808 8.104A

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1977/1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74591

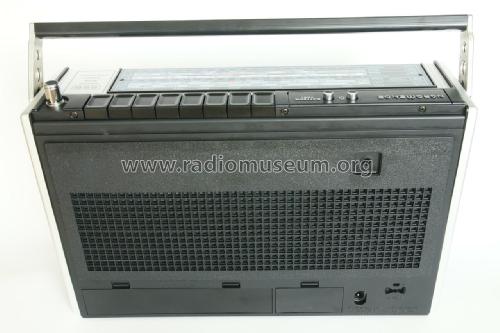

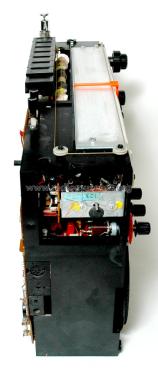

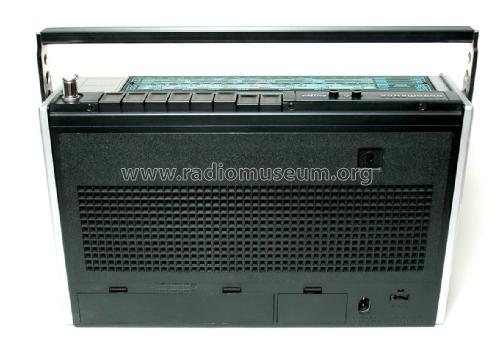

• Picture

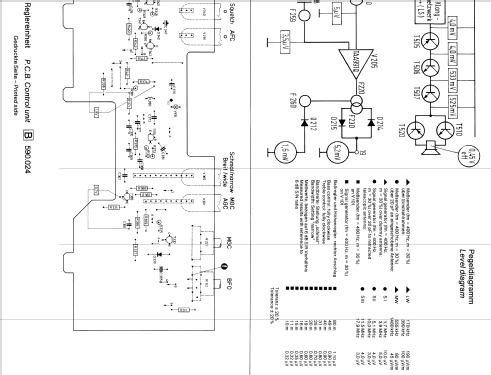

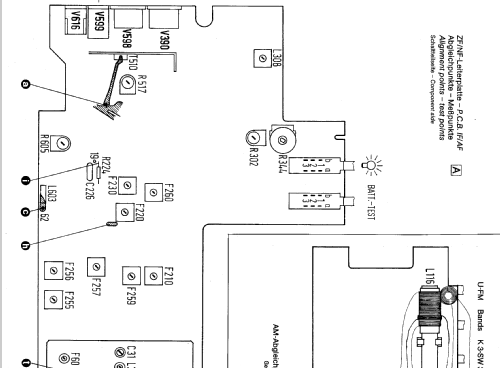

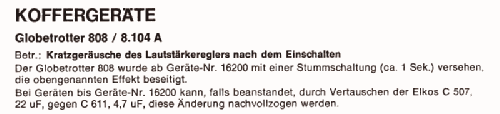

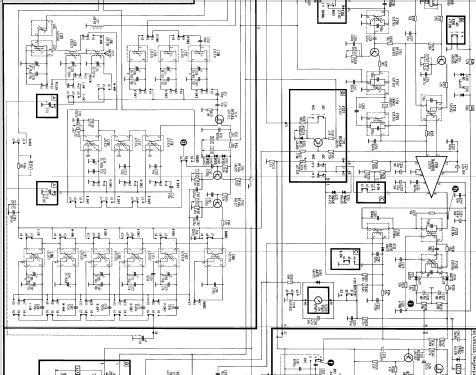

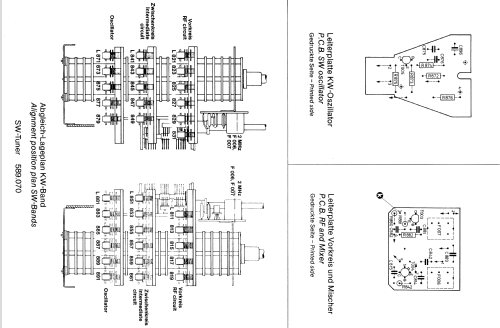

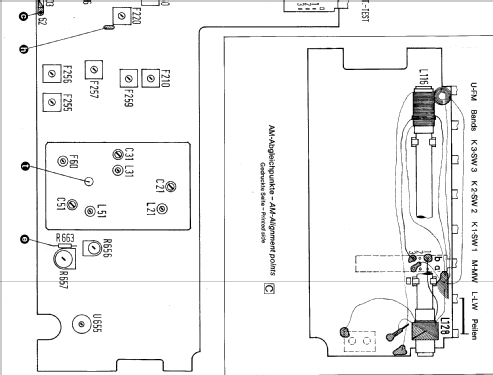

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 37

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 1200/2460 kHz

• Tuned circuits
• 9 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 6×1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Globetrotter 808 8.104A - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 400 x 250 x 120 mm / 15.7 x 9.8 x 4.7 inch

• Notes
• ICs:1.
  Analogskala, Trommeltuner, BFO. Externe Stromversorgung mit 12···14,8 V- möglich.

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• External source of data
• R. Lichte

• Source of data
• Handbuch VDRG 1977/1978

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
