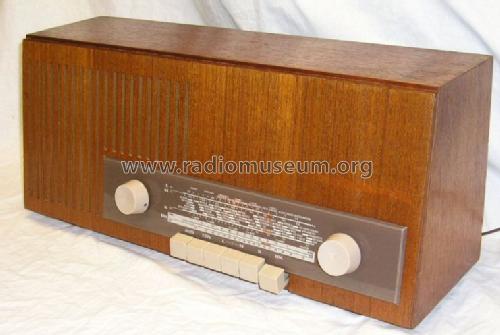

Göteborg V26 Ch= 4/612 Nussbaum
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1963/1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 25676
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- Selengleichrichter OA79 OA79
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Göteborg V26 Ch= 4/612 [Nussbaum] - Nordmende, Norddeutsche Mende-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 520 x 230 x 165 mm / 20.5 x 9.1 x 6.5 inch
- Net weight (2.2 lb = 1 kg)
- 4.9 kg / 10 lb 12.7 oz (10.793 lb)
- Price in first year of sale
- 368.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1963/1964
- Literature/Schematics (1)
- -- Original-techn. papers.
