Goldene 20 - Charleston 49m Ch= 8.109C (Ch= 768.109.C)

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7650

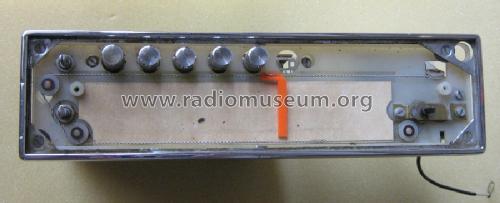

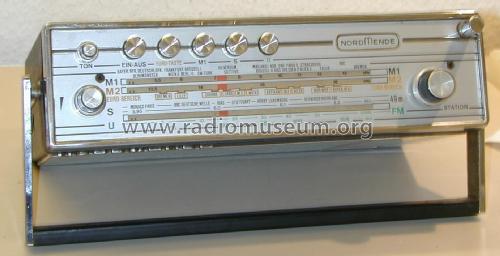

• Picture

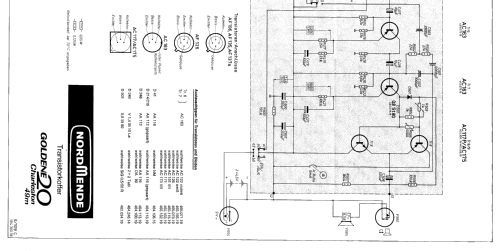

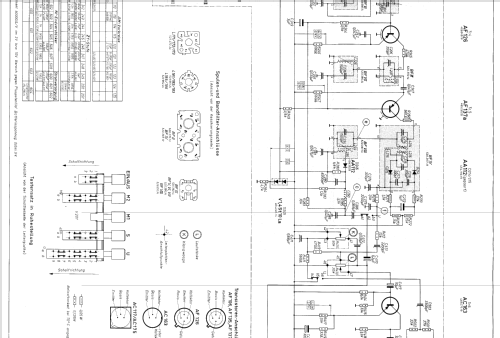

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF106 AF135 AF126 AF126 AF137 AC163 AC163 AC117 AC175 AA112 AA112 AA112 AA118

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Goldene 20 - Charleston 49m Ch= 8.109C - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 275 x 175 x 75 mm / 10.8 x 6.9 x 3 inch

• Notes
• UKW: 87,5 - 104 MHz
  MW1: 515 - 1370 kHz
  MW2: 1340 - 1625 kHz
  KW: 5950 - 6200 kHz

  Netzbetrieb mit zusätzlichem Netzteil TN061 möglich.
  Ferrit-Antenne 17 cm; Lautsprecher cm 15 x 9,5 x 6.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• Handbuch VDRG 1967/1968 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
