• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1959/1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 101630

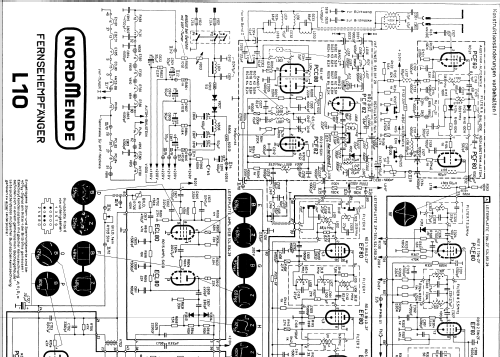

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• PCC88 PCF82 EF80 EF80 PM84 PCF80 EF80 EF80 EF85 PCL84 PCF80 EF80 EBC91 PL84 ECL80 PCL82 ECH81 PL36 PY88 DY86 AW53-88

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

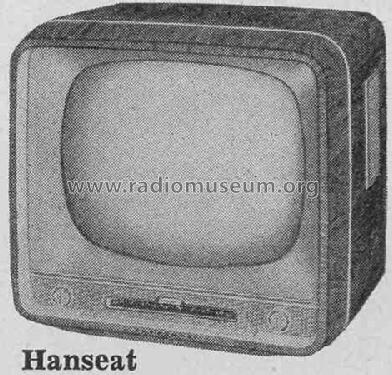

• Model: Hanseat 60 Ch= L10 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 645 x 560 x 465 mm / 25.4 x 22 x 18.3 inch

• Notes
• VHF; Mehrpreis für eingebauten UHF-Tuner: 108,- DM.

• Net weight (2.2 lb = 1 kg)
• 38.5 kg / 84 lb 12.8 oz (84.802 lb)

• Price in first year of sale
• 998.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
