• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28040

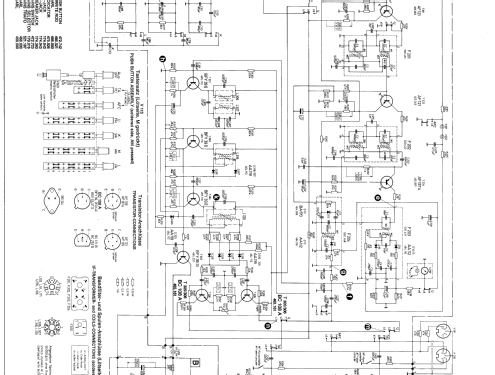

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors
• AF106 AF121 AF125 AF137 BFY39II BFY39IV BC108 BC171 BC252 BSX40 BSY53 BD124 ST12_Intermetall AA112 AA118 AA119 BA124 BA170 SiG0,5/50R ZE1,5 ZD16 Si-Br-Gl

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 17 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: HiFi 7001 971.139A Ch= 771.139A - Nordmende, Norddeutsche Mende-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 555 x 110 x 197 mm / 21.9 x 4.3 x 7.8 inch

• Notes
• Halbleiter teils mehrfach vorhanden

  UKW: 87,5 - 104 MHz
  KW: 5950 - 6200 kHz
  MW: 515 - 1650 kHz
  LW: 140 - 360 kHz

  Vollstereo, NF-Verstärker mit zwei Endstufen je 8,5 W (Sinus).

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971

• Mentioned in
• -- Original-techn. papers.
