• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1968–1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27445

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 61

• Semiconductors
• BF245 AF106 BF184 AF125 BFY39 BFY40 ST12_Intermetall AC151 BC107 BC109 BC113 BC114 BC115 BC116 BC125 BC126 BC134 BC142 BC143 BD117 2N3055 AA112 AA119 BA128 BB104 OA90 SiG0,5/50R ZD6,8 ZD15 ZD33 ZE1,5 Si-Br-Gl

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     16 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

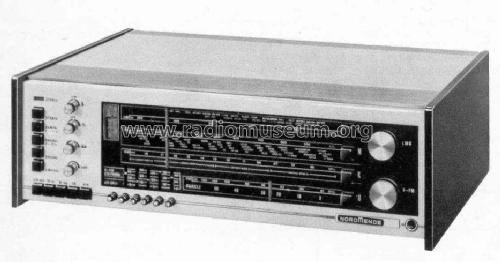

• Model: HiFi 8001/ST 969.134A Ch= 9.134A - Nordmende, Norddeutsche Mende-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 496 x 153 x 356 mm / 19.5 x 6 x 14 inch

• Notes

• Halbleiter teils mehrfach vorhanden

  Chassis 769.134A:
  UKW: 87,5 - 104 MHz
  KW: 5900 - 9800 kHz
  MW: 515 - 1650 kHz
  LW: 140 - 360 kHz

  Chassis 769.134E: (Exportgerät)
  UKW: 87,5 - 108 MHz
  KW: 5900 - 9800 kHz
  MW: 515 - 1650 kHz
  LW: 160 - 400 kHz

  Vollstereo, NF-Verstärker mit zwei Endstufen je 30 W

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1968/1969

• Mentioned in
• Funk-Technik (FT) (4/1968, S. 127 - 130 / Beschreibung, Schema)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 1751 models, 1642 with images and 1268 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
