• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142070

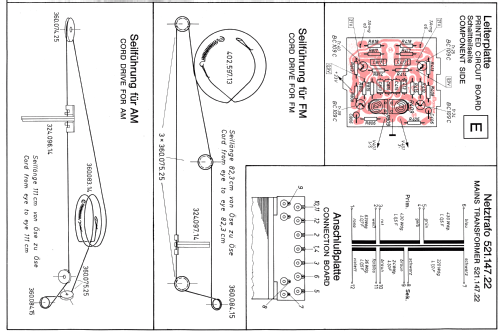

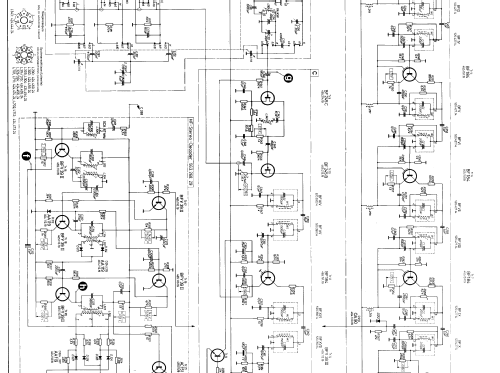

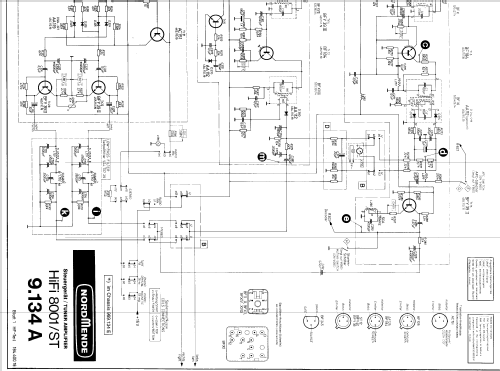

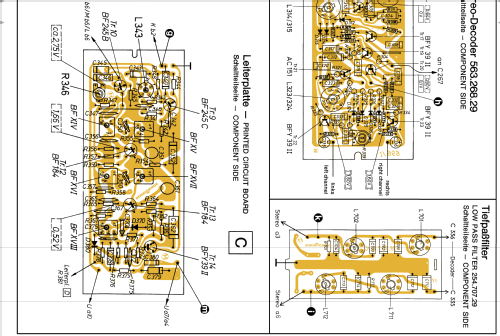

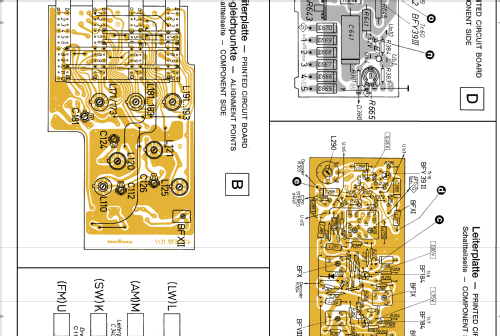

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 61

• Semiconductors

• Main principle
• Superheterodyne (common); Export model

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Tuner-Amplifier HiFi 8001/ST-C Ch= 9.134E - Nordmende, Norddeutsche Mende-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 496 x 153 x 356 mm / 19.5 x 6 x 14 inch

• Notes

• Nordmende HiFi 8001/ST-C
  FM multiband receiver, US export model of the domestic HiFi 8001/ST, FM up to 108 MHz, english lettered, note also different LW range: 160 - 400 KHz, 5 FM presets, SW: ~6.0 - 10.0 MHz, tuning meter, DIN terminals, wooden side panels.

  Chassis 769.134E :
  UKW: 87,5 - 108 MHz
  KW: 5900 - 9800 kHz
  MW: 515 - 1650 kHz
  LW: 160 - 400 kHz

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Mentioned in
• (US) Audio 1969 Volume 53 Number 1-12

• Author
• Model page created by a member from A. See "Data change" for further contributors.
