HiFi comfort stereo-recorder 4.437.A
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1973–1976
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 29438

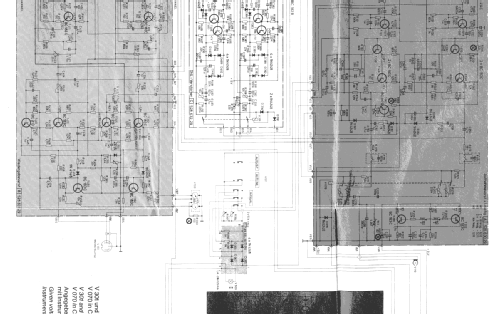

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 52
- Semiconductors
- BC414 BC182 BC183 BC212 BC213 BC223 BC231 BC317 BD463 BD561 BD737 2N3055 SN7400 SN7402
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: HiFi comfort stereo-recorder 4.437.A - Nordmende, Norddeutsche Mende-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 345 x 100 x 245 mm / 13.6 x 3.9 x 9.6 inch
- Notes
-
ICs: 3.

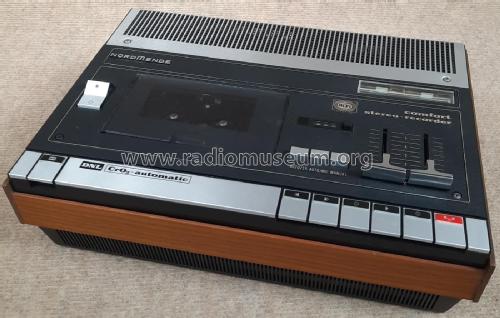

Nordmende HiFi Comfort Stereo-Recorder.
Frequenzumfang: 40···14000 Hz; DNL-Rauschunterdrückung.Elektronische Tipptastensteuerung, 2 Motoren, getrennte Aufnahme- und Wiedergabeverstärker, Funktionsstufen in einzelne Platinen "Modultechnik" unterteilt.
Halbleitertypen nur einmal aufgeführt
- Net weight (2.2 lb = 1 kg)
- 4.9 kg / 10 lb 12.7 oz (10.793 lb)
- External source of data
- Erb
- Source of data
- Katalog RFP 1974
- Mentioned in
- Handbuch VDRG 1975/1976
- Literature/Schematics (1)
- Funk-Technik (FT) (21/1973, S. 803 / Neuvorstellung, Messe Berlin)
