Philharmonic HiFi Stereo 8600 SC-F 9.164.A

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1979 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182882

• Picture

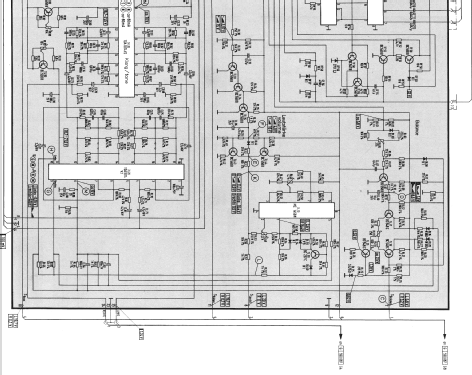

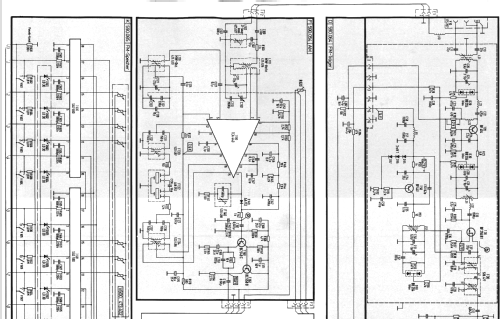

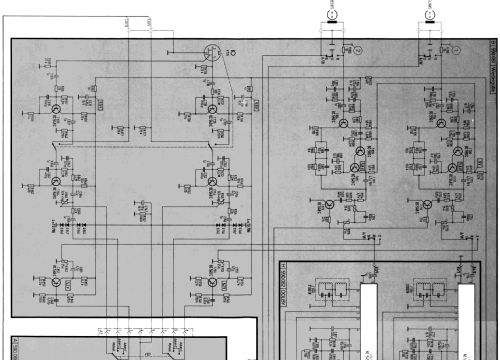

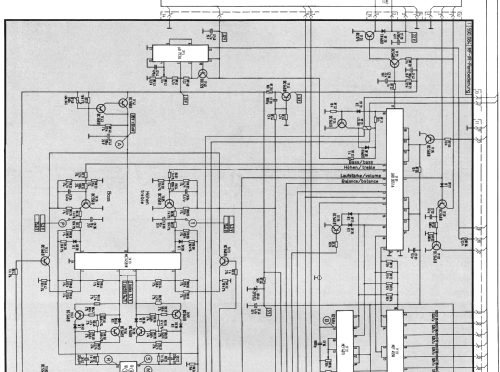

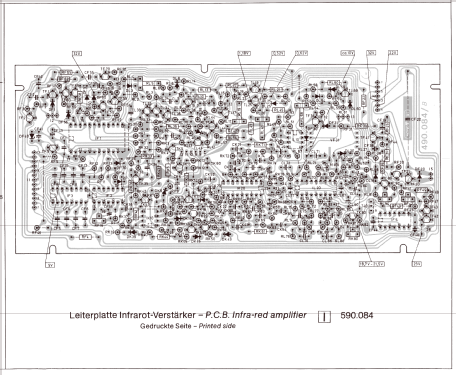

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• TCA440 TCA420 TCA4500 SAS580 SAS590 TDB1033 SAB3012 CD4011 CD4556 MC1458 MC1458 TDA1074 TDA1074 NE545 NE545 µA723 BD203 BD204 BD203 BD204

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (80 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Philharmonic HiFi Stereo 8600 SC-F 9.164.A - Nordmende, Norddeutsche Mende-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 580 x 160 x 270 mm / 22.8 x 6.3 x 10.6 inch

• Notes

• Entspricht weitgehend dem Modell HiFi Stereo 8500 SC, hat jedoch zusätzlich eine IR-Fernbedienung.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Klaus Rohlfing. See "Data change" for further contributors.

• Other Models

• Here you find 1751 models, 1642 with images and 1268 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
