• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1976/1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80886

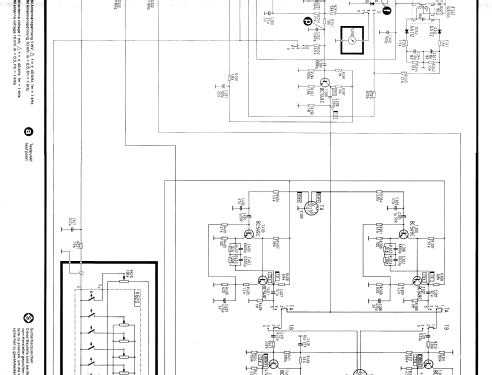

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 33

• Semiconductors
• BF414 BF441 BF254 BF240 BC549 BC558 BC546 BC556 BC637 BC638 BD203 BD204 BD167 TAA991 TDA1005 BB204 AA112 AA133 1N4148 ZTK27 1N4003 Si-Br-Gl

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 50 W (80 W max.)

• from Radiomuseum.org
• Model: Hifi Stereo Steuergerät 8025ST 7.162A - Nordmende, Norddeutsche Mende-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 578 x 93 x 247 mm / 22.8 x 3.7 x 9.7 inch

• Notes
• Halbleiter teils mehrfach vorhanden

  UKW: 87,5 - 108,5 MHz
  KW: 5900 - 6200 kHz
  MW: 515 - 1650 kHz
  LW: 145 - 360 kHz


• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Daniel Doll. See "Data change" for further contributors.
