• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1986

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 133170

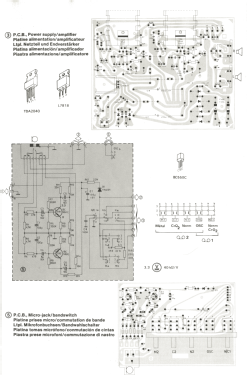

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: HiFi-System 2800 - Nordmende, Norddeutsche Mende-

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 480 x 820 x 420 mm / 18.9 x 32.3 x 16.5 inch

• Notes

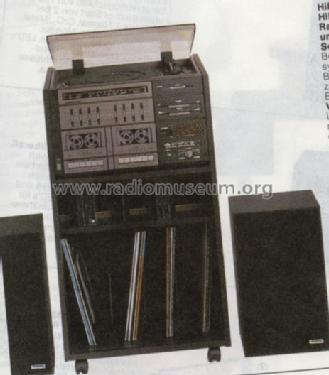

• Doppelcassettendeck und Plattenspieler. 2 getrennte 2-Wege-Lautsprecherboxen.

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
