• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1985 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 223111

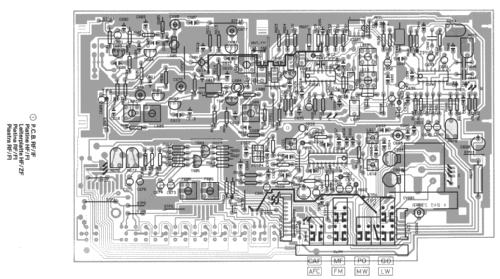

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/17000 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: HiFi System 910 982.167H - Nordmende, Norddeutsche Mende-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 280 x 248 x 243 mm / 11 x 9.8 x 9.6 inch

• Notes
• Kompaktanlage mit den Komponenten Tuner, Verstärker, Kassettenteil und abnehmbaren Zweiwege-Lautsprecherboxen.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Manfred Rauschen. See "Data change" for further contributors.
