Hifi Tuner Philharmonic TU 1001 983.150H
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1982/1983
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 190680

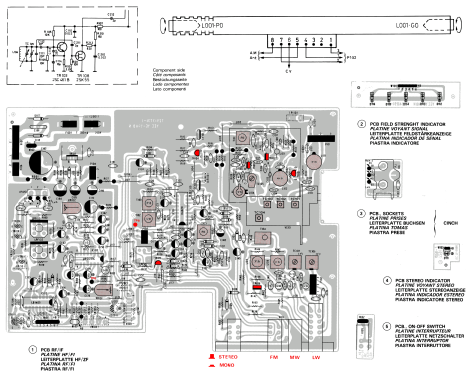

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors

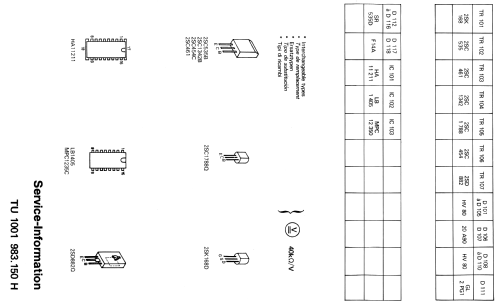

- 2SK168 2SC535 2SC461 2SC1342 2SC1788 2SC454 2SD882 HA11211 LB1405 µPC1235 HV80 20A90 GL2PG1 SR535D F14A
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Hifi Tuner Philharmonic TU 1001 983.150H - Nordmende, Norddeutsche Mende-
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 440 x 62 x 302 mm / 17.3 x 2.4 x 11.9 inch
- Notes
-
Dioden teils mehrfach vorhanden.
UKW: 87,5 - 108 MHz
MW: 515 - 1620 kHz
LW: 145 - 350 kHzSee also similar model Thomson Española S.A. MT-250E
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)

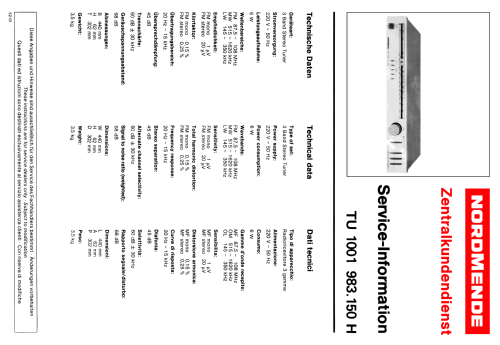

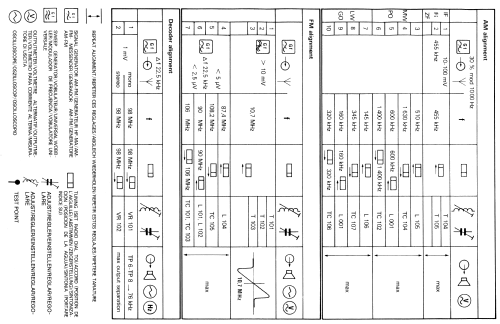

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Aleksandr A. Revontchenkov. See "Data change" for further contributors.
