• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26578

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC808 EMM803 ECLL800 ECLL800 ECC81

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

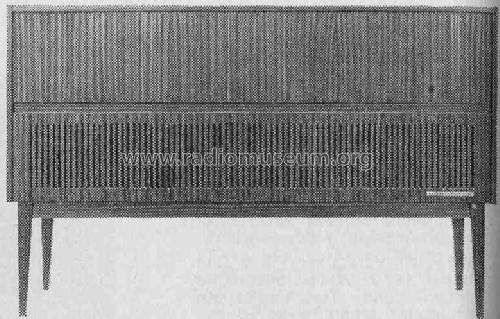

• Model: Immensee Ch= 867.675.08 - Nordmende, Norddeutsche Mende-

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1200 x 745 x 390 mm / 47.2 x 29.3 x 15.4 inch

• Notes
• Dioden: BA110, 2× OA79, OA81, 10× OA81.
  Rundfunk-Chassis = 867.675.08, Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Endstufen je 7 W;
  Phono-Chassis = Dual 1010A.

• Net weight (2.2 lb = 1 kg)
• 40.5 kg / 89 lb 3.3 oz (89.207 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967
