• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1957/1958

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 99706

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• PCC88 PCF82 EF80 EF80 EF80 EF80 ECC82 EF80 PL83 EF80 EF80 PABC80 PL84 ECL80 ECC82 PCL82 ECH81 PL36 PY81 or PY83 DY86 AW43-80

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

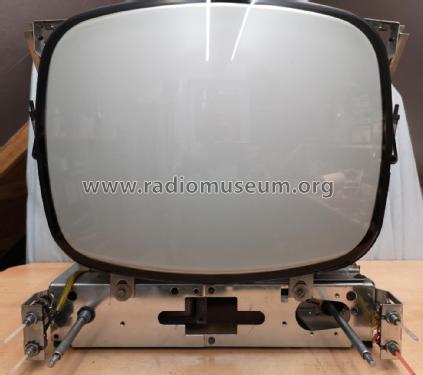

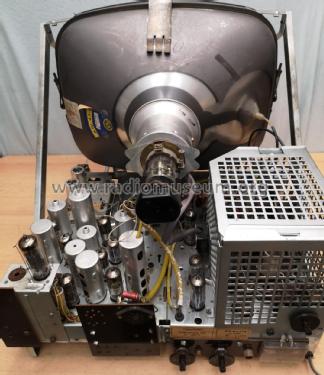

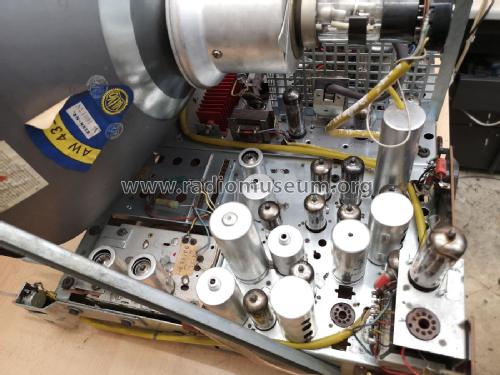

• Model: Immensee 58 Ch= 5791X + Rfk. Ch= 5713x - Nordmende, Norddeutsche Mende-

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1075 x 890 x 570 mm / 42.3 x 35 x 22.4 inch

• Notes

• Fernseh-Chassis = Diplomat 58;
  Rundfunk-Chassis = Fidelio 58;
  Phono-Chassis = Dual 1004.

• Net weight (2.2 lb = 1 kg)
• 81.5 kg / 179 lb 8.2 oz (179.515 lb)

• Price in first year of sale
• 1,698.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
