• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1959/1960

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 101662

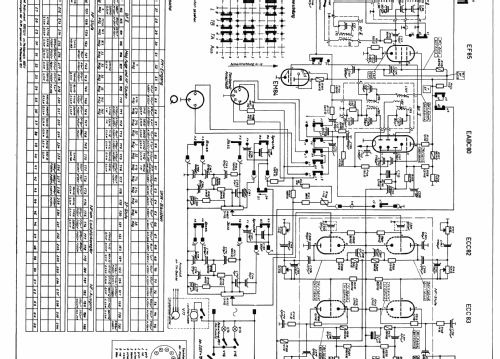

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Imperator-Stereo 60 Ch= StL10 Rfk. Ch= 0/632 Stereo - Nordmende, Norddeutsche Mende-

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1230 x 915 x 534 mm / 48.4 x 36 x 21 inch

• Notes

• Fernseh-Chassis = Konsul Ch= StL10;
  Rundfunk-Chassis = Othello Stereo Ch= 0/632;
  Phono-Chassis = Dual 1004.
  Mehrpreis für UHF-Tuner (organisch eingebaut): 108,- DM.

• Net weight (2.2 lb = 1 kg)
• 87 kg / 191 lb 10.1 oz (191.63 lb)

• Price in first year of sale
• 1,848.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
