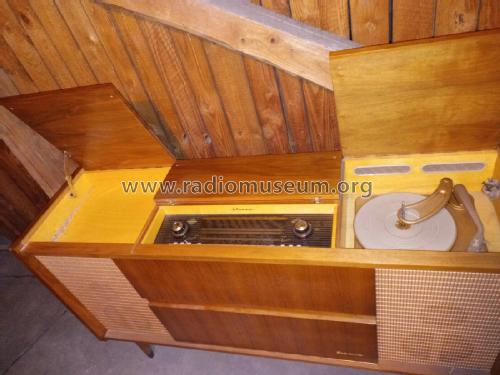

Isabella-Stereo E810 (861.633.37) Ch= 1/633

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 206563

• Picture

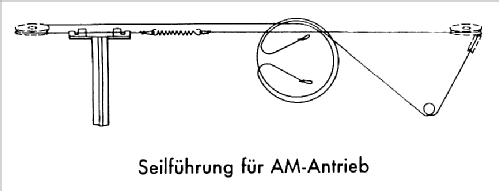

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM84 EAA91 ECC82 ECC83 ECC83 ELL80 ELL80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 10 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Isabella-Stereo E810 Ch= 1/633 - Nordmende, Norddeutsche Mende-

• Shape
• Console with any shape - in general

• Notes

• Plattenwechsler zuerst Dual 1004S/KS2, später Dual 1007.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
