Isabella-Stereo Ch= 6/683
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1965–1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 26216
Quelle: Nordmende Programm 1966
aus Programm 1966

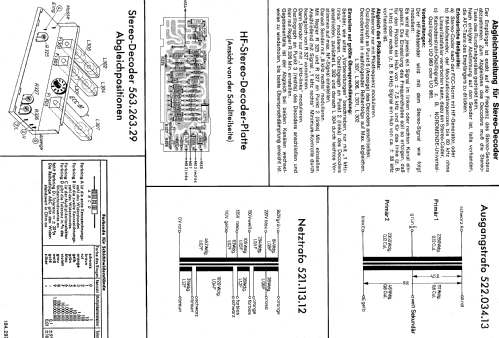

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Isabella-Stereo Ch= 6/683 - Nordmende, Norddeutsche Mende-
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1380 x 795 x 415 mm / 54.3 x 31.3 x 16.3 inch
- Notes
- Dioden: BA110, 2× OA79, 10× OA81.
Rundfunk-Chassis = 6/683, dreh- und abschaltbare Ferritantenne, Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 8,5 W.
Phono-Chassis = Dual 1011.
- Net weight (2.2 lb = 1 kg)
- 63 kg / 138 lb 12.3 oz (138.767 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1965/1966
- Mentioned in
- Handbuch VDRG 1966/1967
- Literature/Schematics (1)
- -- Original-techn. papers.
