• Year
  • 1963/1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 315721

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

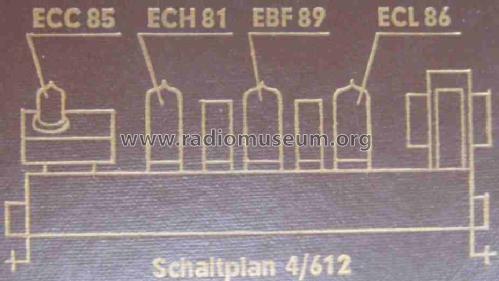

  • Number of Tubes
  • 4
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 3 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

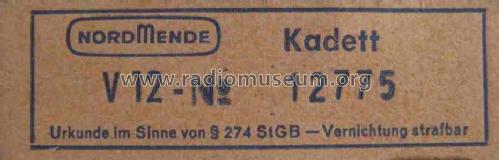

  • Model: Kadett V12 4/612 - Nordmende, Norddeutsche Mende-
  • Shape

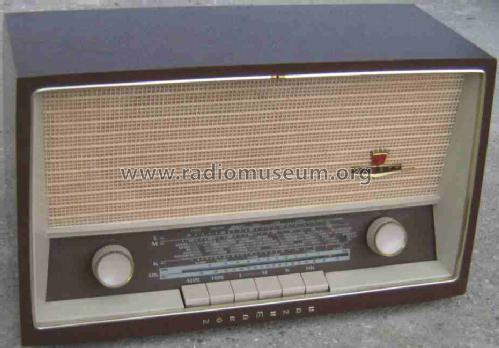

  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 420 x 250 x 180 mm / 16.5 x 9.8 x 7.1 inch
  • Net weight (2.2 lb = 1 kg)
  • 4.9 kg / 10 lb 12.7 oz (10.793 lb)
  • Price in first year of sale
  • 226.00 DM
  • Literature/Schematics (2)
  • -- Original-techn. papers.
  • Author
  • Model page created by Martin Steyer. See "Data change" for further contributors.
