• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1954/1955

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 19532

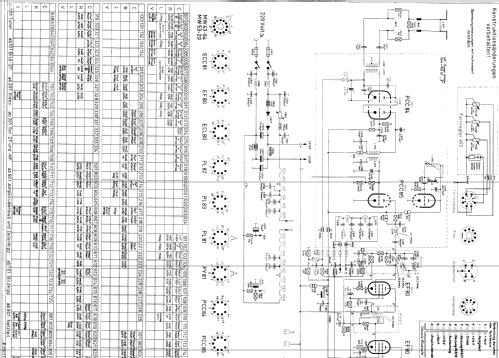

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC84 PCC85 EF80 EF80 EF80 PL83 EF80 PABC80 PL82 EAA91 PCF80 ECL80 ECC81 PL81 PY81 EY51 MW43-64

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

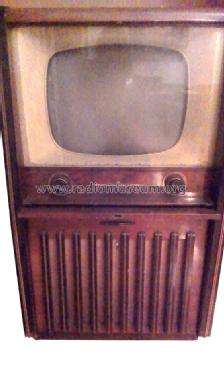

• Model: Kommodore 55 Ch= 564 + Rdf. Ch= 403 [mit ECL80] - Nordmende, Norddeutsche Mende-

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 570 x 960 x 535 mm / 22.4 x 37.8 x 21.1 inch

• Notes

• TV-Chassis = Diplomat 55; 12 VHF-Kanäle + 2 Reserve;
  Rundfunk-Chassis = Carmen 55;

• Net weight (2.2 lb = 1 kg)
• 53 kg / 116 lb 11.8 oz (116.74 lb)

• Price in first year of sale
• 1,498.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55

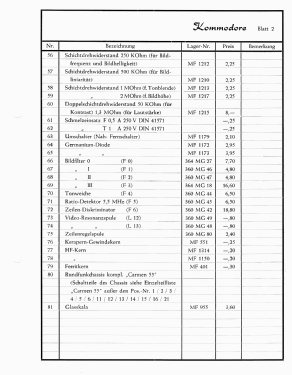

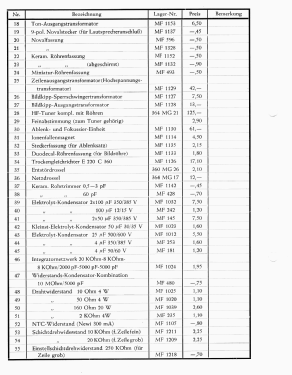

• Literature/Schematics (1)
• -- Original-techn. papers.
