• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1968 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 191529

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• PCL86 PC92 PCL85 PL500 or PL504 PY88 DY86 or DY802

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Konsul 21 971.231.A Ch= Uni 17 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Notes
• Nordmende Tisch TV mit CCIER VHF/UHF Tuner, Anschluss für Fernbedienung vorbereitet. Bildröhre nicht dokumentiert

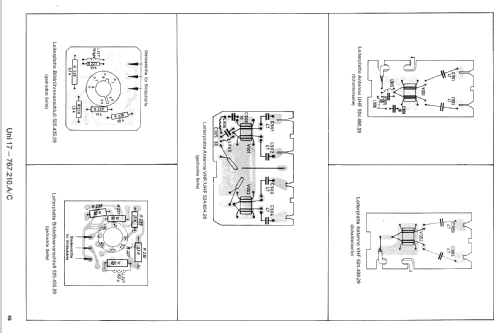

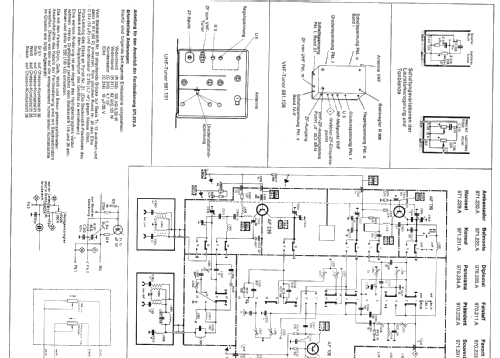

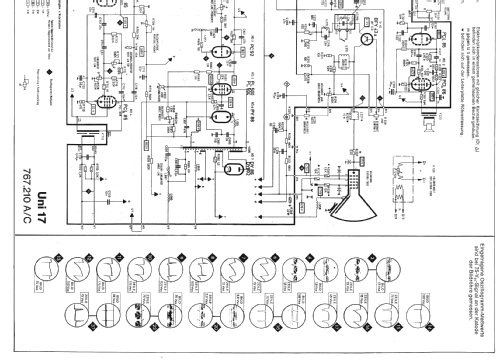

• Literature/Schematics (1)
• Original Nordmende Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
