Mambo (59) Ch= 0/600 860.600.00 mit OC74

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 136989

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC613 OC612 OC612 OC71 OC71 OC74 OC74 OA70

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 3 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

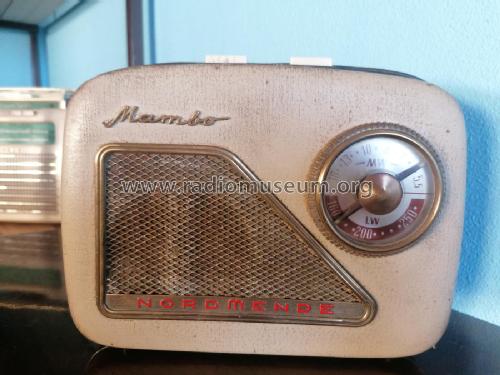

• Model: Mambo Ch= 0/600 860.600.00 [mit OC74] - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 165 x 70 mm / 8.7 x 6.5 x 2.8 inch

• Notes

• Die Bezeichnung Mambo 59 findet sich nur am Skalenrand unten (bei abgenommener Drehscheibe sichtbar), jedoch nicht auf den Typschild oder im Grosshandelskatalog.

  Siehe auch Vorjahresmodell Mambo 59 859.600.00

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1959/60 (S. B11)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• Handbuch RFP 1959/60 S. 242

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
