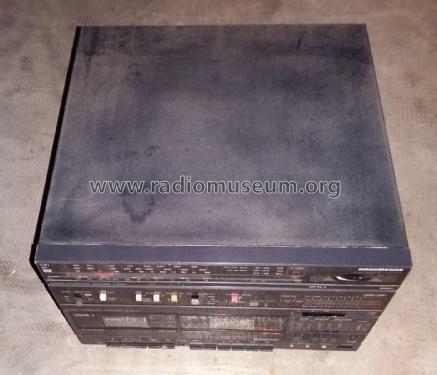

Midi Compact System MS 3000 987.133H (987.141H)

Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Data
Forum
Pictures
Collections

  • Year
  • 1985 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 327860

 Technical Specifications

  • Number of Transistors
  • 36
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Midi Compact System MS 3000 987.133H - Nordmende, Norddeutsche Mende-
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 350 x 240 x 340 mm / 13.8 x 9.4 x 13.4 inch
  • Notes

  • Compact system, radio and double cassette recorder/player. FM stereo radio with LW, MW and SW. FM mode stereo/mono.
    Tape A only playback. Tape 2 play/record. Normal and high speed dubbing. Tape supported: Normal / Chrome metal playback. Dolby NR. Mechanic counter 3 digit.
    Input stereo microphone. Line in/out and Phono.
    Stereo Headphones.
    Graphic equalizer at 100 - 300 - 1k - 3.3k and 10k Hz.
    36 transistors, 11 ICs, 4 rectifier diodes and 13 diodes, listed one per type and not all.

    The Nordmende midi compact system MS3000 consists of:

    • Stereo Integrated Receiver T3000
    • Stereo Integrated Amplifier PA3000
    • Stereo Double Cassette Deck DK3000
  • Net weight (2.2 lb = 1 kg)
  • 5.2 kg / 11 lb 7.3 oz (11.454 lb)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
