• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1984

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 219676

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Line / Batteries (any type)

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

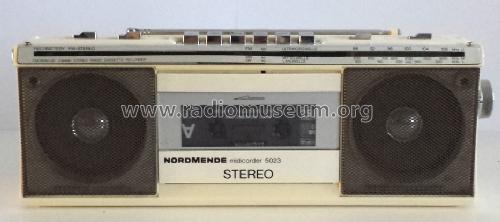

• Model: Midicorder 5023 - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 296 x 109 x 58 mm / 11.7 x 4.3 x 2.3 inch

• Notes
• Nordmende Midicorder 5023,
  FM / MW / LW 3 Band Stereo Radio Cassette Recorder,
  2 x 1,5 Watt Musikleistung,
  Gewicht: 1,3 kg incl. Batterien.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Source of data
• -- Original prospect or advert
