• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1977 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 118719

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2SC644 2SC828 2SB324

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 220 / 6 / UM2: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

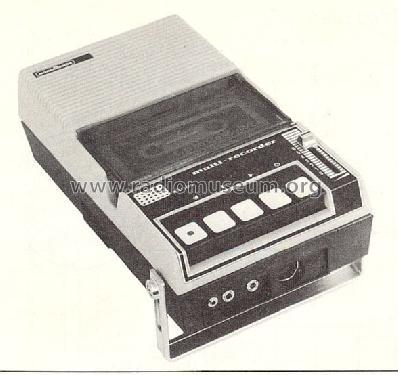

• Model: Multi-Recorder 5.446 A - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 129 x 69 x 235 mm / 5.1 x 2.7 x 9.3 inch

• Notes

• Nordmende Typ: 446A Kassettenrekorder DC only mit eingebautem Mikrophon. Anschlüsse: 6V Netzteilanschluß , Ohrhörer o. Zweitlautsprecher, externes Mikrophon , DIN in/out . Einschiebbarer Metalltragegriff

• Net weight (2.2 lb = 1 kg)
• 1.510 kg / 3 lb 5.2 oz (3.326 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
