Multi-Recorder 972.412 A

Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Data
Forum
Pictures
Collections

  • Year
  • 1972 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 118716

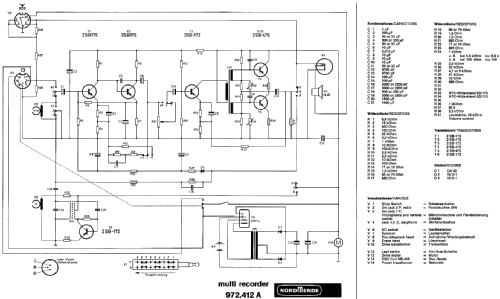

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / AC 220; Batt. 4 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
  • Power out
  • 0.25 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Multi-Recorder 972.412 A - Nordmende, Norddeutsche Mende-
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 125 x 75 x 240 mm / 4.9 x 3 x 9.4 inch
  • Notes
  • Anschlüsse: Radio/TA und Mikrofon, Kopfhörer, Lautsprecher.
  • Net weight (2.2 lb = 1 kg)
  • 1.3 kg / 2 lb 13.8 oz (2.863 lb)
  • Literature/Schematics (1)

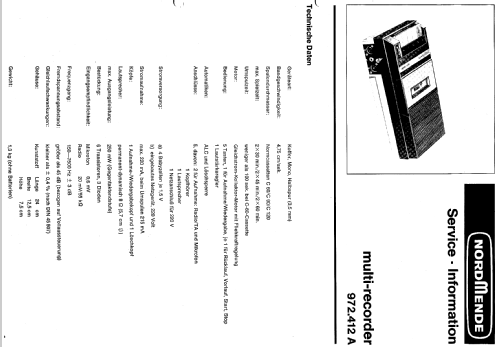

  • -- Original-techn. papers.
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
