• Year
  • 1970 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 76090

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • 3
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

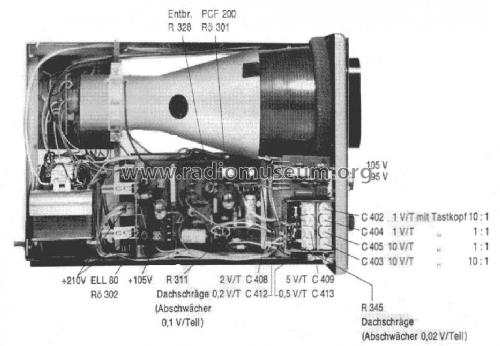

  • Model: Service-Oszillograph SO367/1 - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 195 x 270 x 490 mm / 7.7 x 10.6 x 19.3 inch

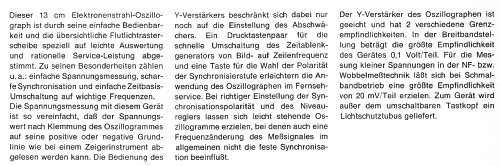

  • Notes
  • Leuchtfarbe gelblichgrün, Anodenspannung 1,8 kV, Frequenzbereich 3 Hz bis 5 MHz.

    Zubehör:
    Tastkopf, Typ 362 - 55,- DM
    Lichtschutztubus, Typ 367/68 - 16,- DM
    Sonderzubehör auf Wunsch:
    HF-Tstkopf, Typ 348 - 72,- DM
    Tast-Demodulator, Typ 349 - 72,- DM.



  • Net weight (2.2 lb = 1 kg)
  • 12 kg / 26 lb 6.9 oz (26.432 lb)
  • Price in first year of sale
  • 924.00 DM
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernd Pötzsch. See "Data change" for further contributors.
