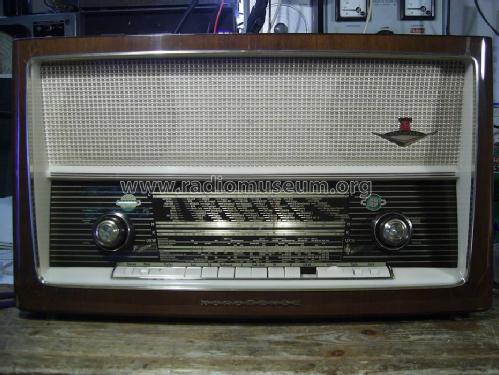

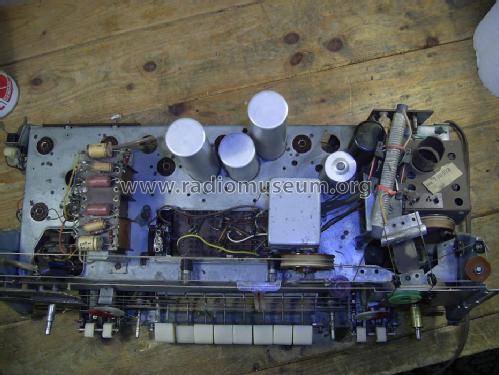

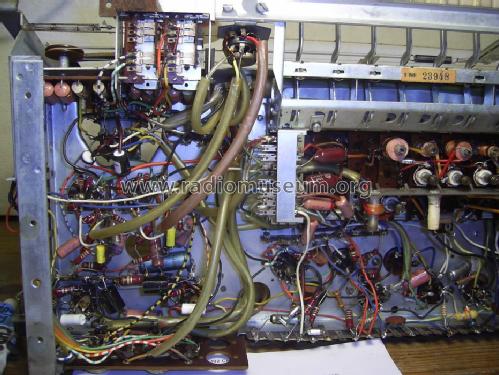

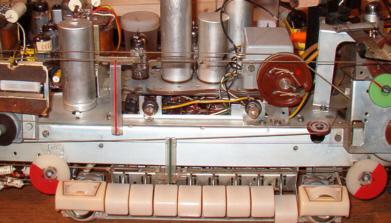

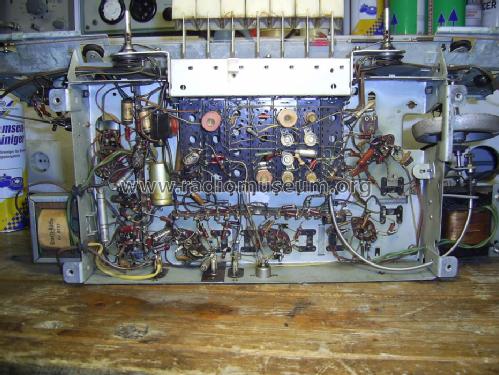

Othello-Stereo E302 Ch= 1/632

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 150759

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 ECC83 ECC83 EL84 EL84

• Number of Transistors

• Semiconductors
• B250C125

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Othello-Stereo E302 Ch= 1/632 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 660 x 385 x 290 mm / 26 x 15.2 x 11.4 inch

• Notes

• Nordmende Othello-Stereo mit T.Nr. E302 und Chassis 1/632 hat eine dreh- und abschaltbare Ferritantenne; Stereo-NF-Verstärker mit zwei Endstufen je 5,5 W.

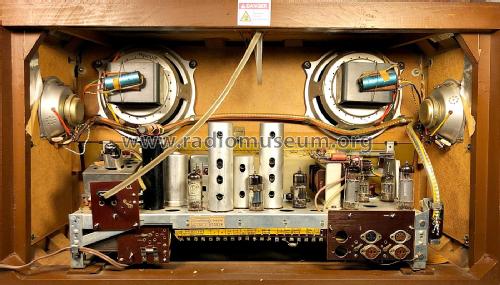

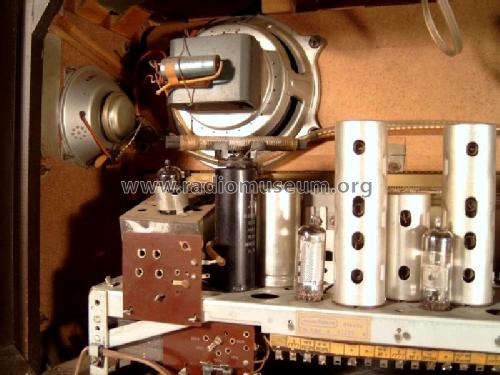

  4 Lautsprecher: je 1 perm.-dyn. Tieftonsystem, 17 cm ø, und je 1 perm.-dyn. Mittel-Hochtonsystem 10 cm ø, je Kanal.

  Ausführung: Edelholz, mittelbraun poliert, oder Nußbaum, natur mattiert.

• Net weight (2.2 lb = 1 kg)
• 15.5 kg / 34 lb 2.3 oz (34.141 lb)

• Price in first year of sale
• 398.00 DM

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1960/61 (S. A115)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• -- Original prospect or advert (Katalog 1960/1961)

• Author
• Model page created by Joachim Pröpper. See "Data change" for further contributors.
