- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1961/1962
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 79649

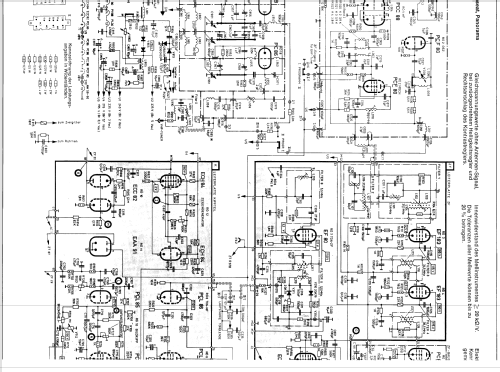

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- PCC88 PCF82 PC88 PC86 EF183 EF183 PCF80 PCL84 EF80 PCL86 ECH84 ECH84 ECC82 EAA91 PCL85 PL36 PY88 DY86 AW59-90
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org

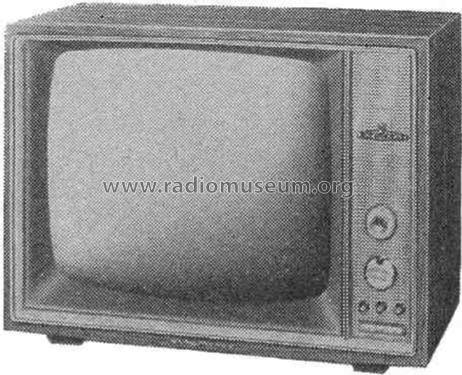

- Model: Hanseat Ch= St13 - Nordmende, Norddeutsche Mende-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 685 x 500 x 450 mm / 27 x 19.7 x 17.7 inch
- Notes
- VHF/UHF. Hochglanzpoliertes Edelholzgehäuse oder Nussbaum Natur mattiert 998DM, Rüster oder Teak 1018 DM
- Net weight (2.2 lb = 1 kg)
- 32 kg / 70 lb 7.8 oz (70.485 lb)
- Price in first year of sale
- 998.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
