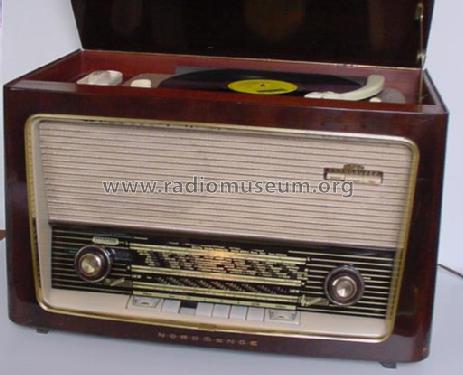

Phono-Super Ch= 0/614
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1959/1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 22967
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- 464.010.15
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 5.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Phono-Super Ch= 0/614 - Nordmende, Norddeutsche Mende-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 560 x 340 x 340 mm / 22 x 13.4 x 13.4 inch
- Notes
-
NF-Stereo vorbereitet (Tandemregler).
Phono-Chassis = PE - Stereo 4230.
- Net weight (2.2 lb = 1 kg)
- 14 kg / 30 lb 13.4 oz (30.837 lb)
- Price in first year of sale
- 455.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60
- Literature/Schematics (1)
- -- Original-techn. papers.
- Other Models
-
Here you find 1747 models, 1640 with images and 1264 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Collections
The model Phono-Super is part of the collections of the following members.
Forum contributions about this model: Nordmende,: Phono-Super Ch= 0/614
Threads: 1 | Posts: 17
Hello
My first Germand radio RE-CAP.
Requesting guidence in recaping and replacing the Rectifier in this Radio
I think some have been replaced , I would submit photo's to help in ID of what should be replaced.
Please correct any errors I may be making as I am new to the forum and invite your comments to improve my input
Bildbreite verkleinert.
Bob Timms, 26.Jan.11
