Radio Clock 971.167 A

Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Year
1970 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
106864

Schematics

Radio Clock 971.167 A; Nordmende, (ID = 259294) Radio — Nordmende, Radio Clock 971.167 A (3)

Radio Clock 971.167 A; Nordmende, (ID = 259295) Radio — Nordmende, Radio Clock 971.167 A (3)

Radio Clock 971.167 A; Nordmende, (ID = 259296) Radio — Nordmende, Radio Clock 971.167 A (3)

Radio Clock 971.167 A; Nordmende, (ID = 259297) Radio — Nordmende, Radio Clock 971.167 A (3)

Radio Clock 971.167 A; Nordmende, (ID = 259326) Radio — Nordmende, Radio Clock 971.167 A (3)

Radio Clock 971.167 A; Nordmende, (ID = 259327) Radio — Nordmende, Radio Clock 971.167 A (3)

Radio Clock 971.167 A; Nordmende, (ID = 259328) Radio — Nordmende, Radio Clock 971.167 A (3)

Radio Clock 971.167 A; Nordmende, (ID = 259329) Radio — Nordmende, Radio Clock 971.167 A (3)

Radio Clock 971.167 A; Nordmende, (ID = 259330) Radio — Nordmende, Radio Clock 971.167 A (3)

Radio Clock 971.167 A; Nordmende, (ID = 259331) Radio — Nordmende, Radio Clock 971.167 A (3)

Radio Clock 971.167 A; Nordmende, (ID = 410544) Radio — Nordmende, Radio Clock 971.167 A (3)

Radio Clock 971.167 A; Nordmende, (ID = 1651295) Radio — Nordmende, Radio Clock 971.167 A (2)
Q: Nordmende, Produkt-Katalog 1970

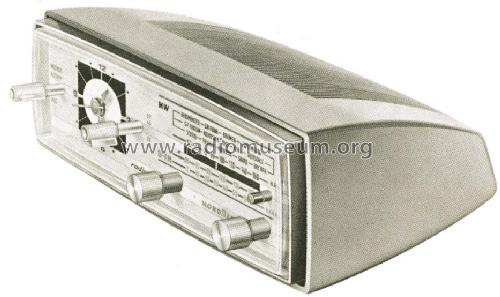

Radio Clock 971.167 A; Nordmende, (ID = 259312) Radio — Nordmende, Radio Clock 971.167 A (2)

Radio Clock 971.167 A; Nordmende, (ID = 547602) Radio — Nordmende, Radio Clock 971.167 A (1)

Radio Clock 971.167 A; Nordmende, (ID = 547604) Radio — Nordmende, Radio Clock 971.167 A (1)

Radio Clock 971.167 A; Nordmende, (ID = 547605) Radio — Nordmende, Radio Clock 971.167 A (1)

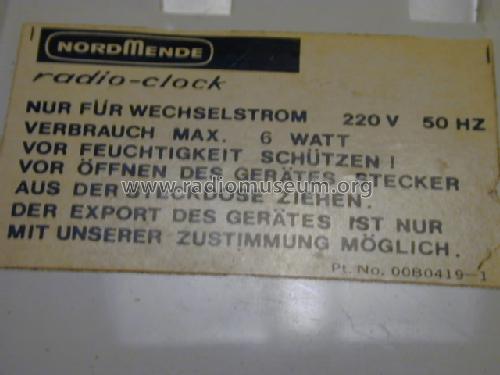

Radio Clock 971.167 A; Nordmende, (ID = 547606) Radio — Nordmende, Radio Clock 971.167 A (1)

Radio Clock 971.167 A; Nordmende, (ID = 970414) Radio — Nordmende, Radio Clock 971.167 A (2)

Radio Clock 971.167 A; Nordmende, (ID = 970415) Radio — Nordmende, Radio Clock 971.167 A (2)

Radio Clock 971.167 A; Nordmende, (ID = 970416) Radio — Nordmende, Radio Clock 971.167 A (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
9

Semiconductors
2SC461 2SC461 2SA350 2SA350 2SA350 2SB75 2SB77 2SB77 2SB77

Main principle
Superheterodyne (common); ZF/IF 455 kHz

Tuned circuits
5 AM circuit(s) 8 FM circuit(s)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
1 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Radio Clock 971.167 A - Nordmende, Norddeutsche Mende-

Shape
Tablemodel with Clock ((Alarm-) Clock Radio).

Dimensions (WHD)
250 x 85 x 145 mm / 9.8 x 3.3 x 5.7 inch

Net weight (2.2 lb = 1 kg)
1.3 kg / 2 lb 13.8 oz (2.863 lb)

Price in first year of sale
1,595.00 ATS

Mentioned in
Praktiker, Nr. 4/1970, Seite 27

Literature/Schematics (1)
-- Original-techn. papers.

Author
Model page created by Josef Pilz. See "Data change" for further contributors.
