• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1983 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 217692

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors
• unknown_tr TA7614 MM5402

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 1 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Radio with other functions

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Power out
• 0.9 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

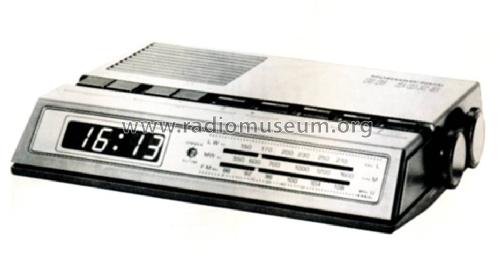

• Model: Radio Clock RR3023 981.171 H - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 250 x 60 x 192 mm / 9.8 x 2.4 x 7.6 inch

• Notes
• HF/ZF-IC TA7614AP, Quarzfilter für AM und FM, Uhren-IC MM 5402N mit LED-Anzeige

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Manfred Rauschen. See "Data change" for further contributors.

• Other Models

• Here you find 1757 models, 1646 with images and 1274 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
