- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 81910

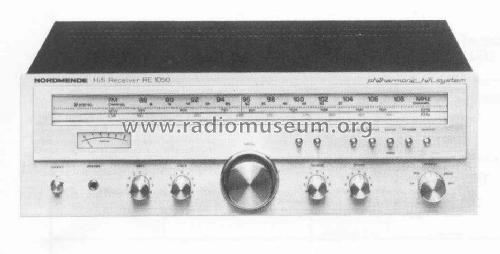

Bild aus Service Manual

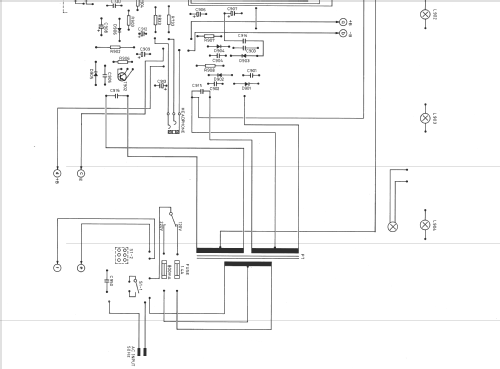

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 23
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 4 AM circuit(s) 6 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: RE1050 979.153H - Nordmende, Norddeutsche Mende-
- Dimensions (WHD)
- 440 x 140 x 290 mm / 17.3 x 5.5 x 11.4 inch
- Notes
- 5 IC's, 24 Dioden, 1 LED
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Daniel Doll. See "Data change" for further contributors.
