• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106865

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF135 AF126 AF126 AF126 AC163 AC163 AC117 AC175 AC117 AA118 AA112 AA112 AA112 SiG0,5/50R ZD10 Si-Br-Gl

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: Regina M 969.122A Ch= 9.122A - Nordmende, Norddeutsche Mende-

• Dimensions (WHD)
• 570 x 130 x 180 mm / 22.4 x 5.1 x 7.1 inch

• Notes
• UKW: 87,5 - 104 MHz
  MW: 515 - 1650 kHz
  KW: 5900 - 6200 kHz

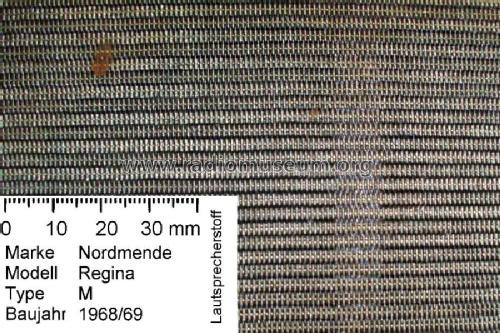

  Gehäusevarianten: Schleiflack weiss mit rot oder anthrazitfarbig abgesetzter Lautsprecherblende. Nussbaum natur und Rio-Palisander mit anthrazitfarbig abgesetzter Lautsprecherblende.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
