Rigoletto 4.123B Ch= 775.122A
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1974/1975
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 167151

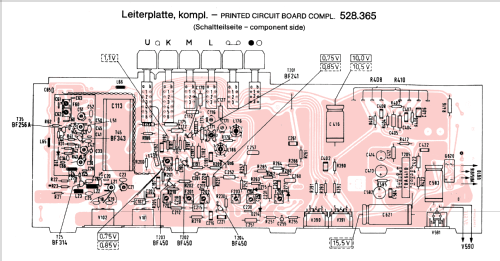

Aus Nordmende Serviceunterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Rigoletto 4.123B Ch= 775.122A - Nordmende, Norddeutsche Mende-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 555 x 130 x 150 mm / 21.9 x 5.1 x 5.9 inch
- Notes
- UKW: 87,5 - 108 MHz
KW: 5950 - 6200 kHz
MW: 515 - 1650 kHz
LW: 145 - 350 kHz
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Thomas Günzel † 1.8.22. See "Data change" for further contributors.
