• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1955/1956

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 20276

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC84 PCC85 EF80 EF80 EF80 PL83 EF80 PABC80 PL82 EAA91 PCF80 ECL80 ECC81 PL81 PY81 EY51 MW43-64

• Main principle
• Superheterodyne (common); ZF/IF 26000 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

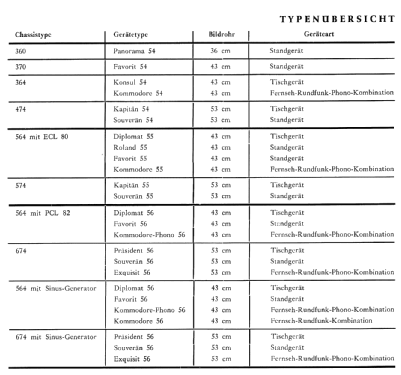

• Model: Roland 55 Ch= 564 [mit ECL80] - Nordmende, Norddeutsche Mende-

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 520 x 825 x 516 mm / 20.5 x 32.5 x 20.3 inch

• Notes

• 12 VHF-Kanäle.

• Net weight (2.2 lb = 1 kg)
• 40.5 kg / 89 lb 3.3 oz (89.207 lb)

• Price in first year of sale
• 885.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56

• Literature/Schematics (1)
• -- Original-techn. papers.
