Rumba E009 Ch= 1/600H
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1960/1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 156081

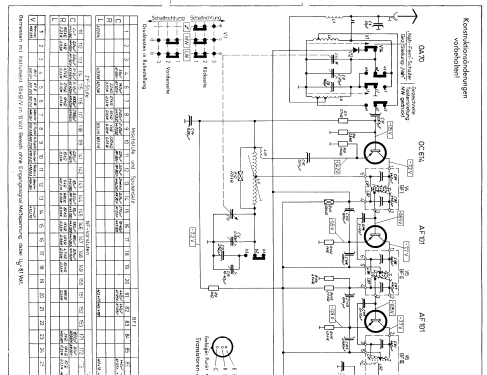

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Rumba E009 Ch= 1/600H - Nordmende, Norddeutsche Mende-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 230 x 170 x 90 mm / 9.1 x 6.7 x 3.5 inch
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Price in first year of sale
- 199.00 DM

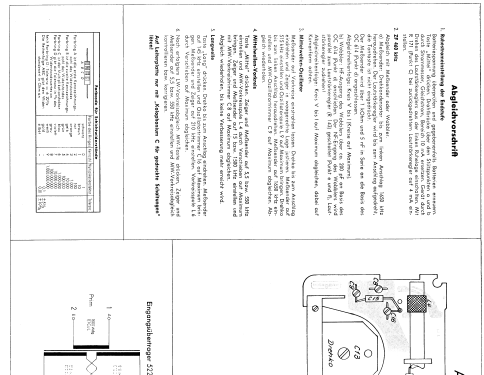

- Literature/Schematics (1)
- -- Original-techn. papers. (GFGF-Datenbank)
- Author
- Model page created by Thomas Günzel † 1.8.22. See "Data change" for further contributors.
