• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 204371

Click on the schematic thumbnail to request the schematic as a free document.

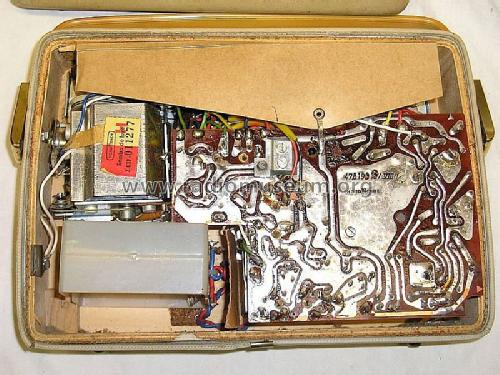

• Number of Transistors
• 9

• Semiconductors
• AF105 AF105 OC615 OC615 AF105 OC75 OC71 OC74 OC74 OA172 OA172

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

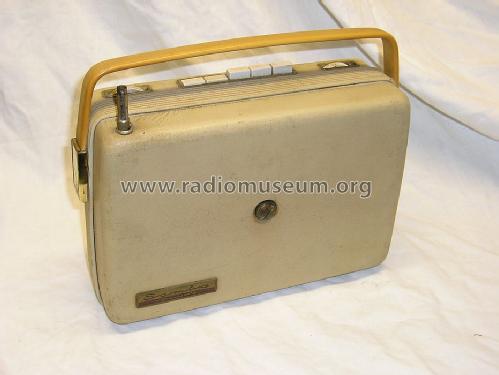

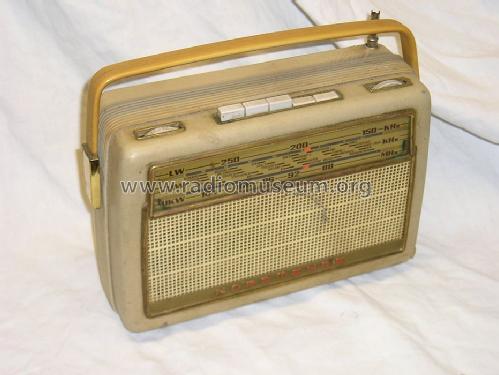

• Model: Samba de Luxe Z039 Ch= 2/603 - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 170 x 85 mm / 9.8 x 6.7 x 3.3 inch

• Notes
• Das Chassis ist das gleiche wie beim Transita de Luxe 2/603.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Andreas Sommerer. See "Data change" for further contributors.
